Annotation Component

The Annotation Component supports the implementation and display of a range annotation types within the Edition VE, Glossary VE and Structure VE.  The Annotation Component encompasses the following constituent features:

  • Edition Annotation
  • Catalog Annotation
  • Glossary Annotation
  • Structure Annotation
Fig X – The Annotation Component displays in a Properties Component pane associated with either an Edition VE, Catalog VE, Glossary VE or Structure VE in the main pane.

Attribution Component

The Attribution Component supports the selection and nomination of a default attribution or attributions; a nominated bibliographic entry or a nominated attribution group.  Scholarly innovation in any subsequent development within any of the features employed in the Establishment, Analysis and Studies Workflows are identified with the nominated attribution.

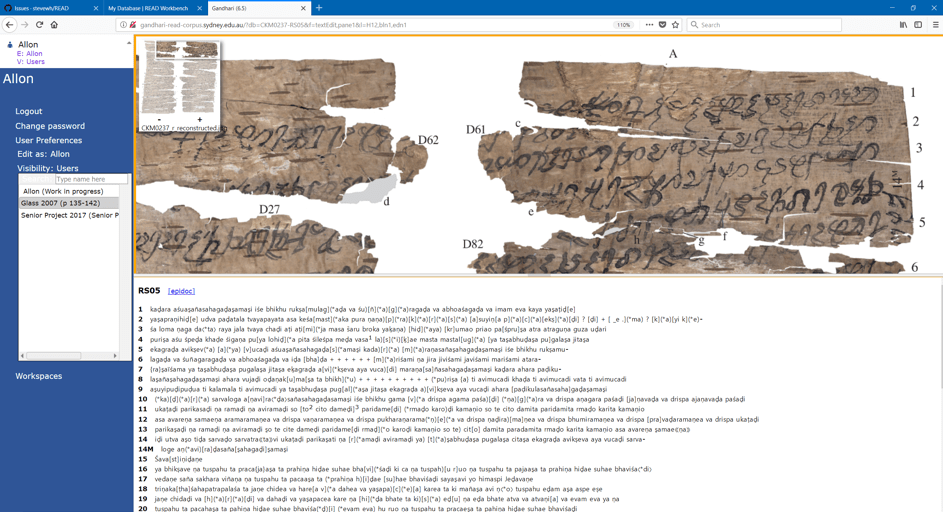

Attribution
Fig X – The Attribution Component displays in the Utility Pane.

Catalog Viewer/Editor (VE)

The Catalog VE supports the creation of a new text and display of all texts within a catalog.  The Catalog VE supports sorting and filtering from the main pane and search and browse from the Utility Panel.

The Catalog VE encompasses the following constituent features:

  • Create Text
  • Text Attributes
  • Text Metadata
  • Sort and Filter Catalog
  • Search Catalog
  • Browse Catalog

The Catalog VE is augmented by an Properties Component, the Catalog Properties Feature.

catalog
Fig X – Catalog VE

Chāyā Viewer

The Chāyā V supports the display of Chāyā type annotations applied using the Annotation Component to hierarchical sequences developed using the Structure Builder feature.  The Chāyā V supports the concatenation of these annotations and displays them within the defined structure.  Annotations applied at lower levels of the structure are ‘shaded’ by those applied at higher levels.  The Chāyā V supports the display of Chāyā annotations from multiple parallel structures.  Chāyā annotations are synchronized with the corresponding sequence(s) in the Edition VE and with corresponding sequence(s) in the Translation V.

Fig X – Chāyā VE

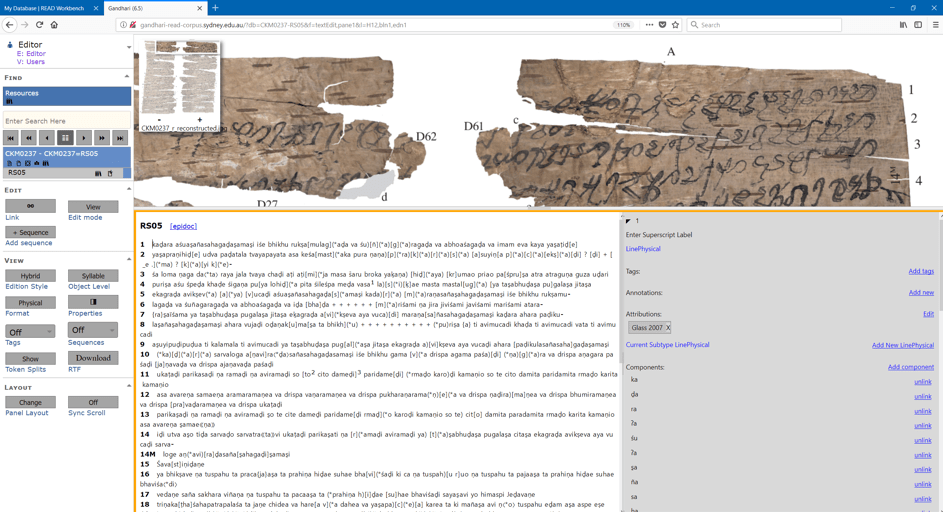

Edition Viewer/Editor (VE)

The Edition VE supports the development and maintenance of a hybrid (encompassing both diplomatic and reconstructed) rendition of a text.  Lines of text may be developed and edited with conventional word processing gestures supported by character, syllable, sandhi and text critical mark-up validation.  Alternatively, transliteration text may be imported and validated.  The edition can be viewed in a variety of renditions and formats.  An edition may be cloned to support collaborative research.  The Edition VE encompasses the following constituent features:

  • Create Edition
  • Edition Attributes
  • Create Transliteration
  • Editing
  • Segment Linker
  • Text critical mark-up
  • Sandhi
  • Rendition
  • Selection
  • Format
  • Clone
  • Text Import
  • Parser Utility

The Edition VE is augmented by an Properties Component constituent, the Edition Properties feature.

The Edition VE displays in a main pane with an associated Properties Component pane.  Edit and View features in the Utility Panel feature provide access to supporting tools.

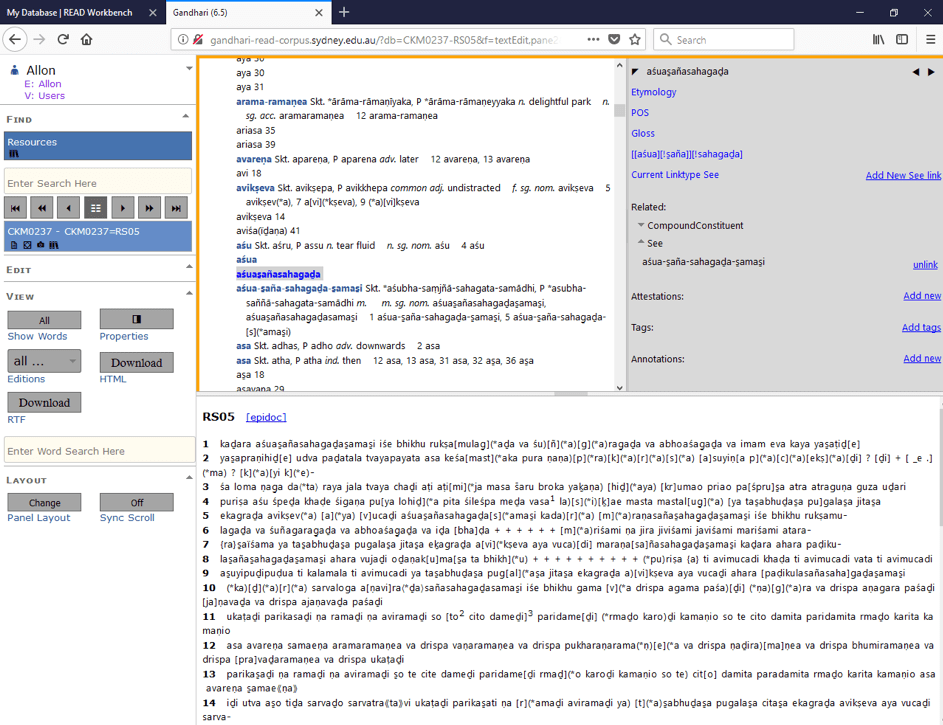

Glossary Viewer/Editor (VE)

The Glossary VE supports the development of a comprehensive glossary of an edition of a text.  Initially based upon the Word List V, lemma are specified and attested forms identified and inflected.  Compound analysis may be undertaken, linkages between lemma implemented and annotations applied to both lemma and attested forms.  The Glossary VE encompasses the following constituent features:

  • Lemma Attributes
  • Lemma Linker
  • Attested Form Linker
  • Inflection Attributes
  • Compound Analysis

The Glossary VE is augmented by an Properties Component, the Glossary Properties feature.

Fig X

Image Import Component

The Image Import Component supports the upload of an image, its identification with a text, the generation of an image thumbnail and the nomination of an image as a baseline image.  The Users Component encompasses the following constituent features:

  • Import
  • Baseline
image import.png
Fig X

Image Viewer/Editor (VE)

The Image VE supports the inspection of an image, the segmentation of signs on that image, the ordering of those segments and the linking of those ordered segments to syllables exposed in the Edition VE.  The Image VE encompasses the following constituent features:

  • Navigation
  • Adjustment
  • Segmentation
  • Ordering
  • Syllable Linker
The Image VE displays in a panel with an embedded navigation pane.  Edit and View features in the Utility Panel feature provide access to supporting tools.

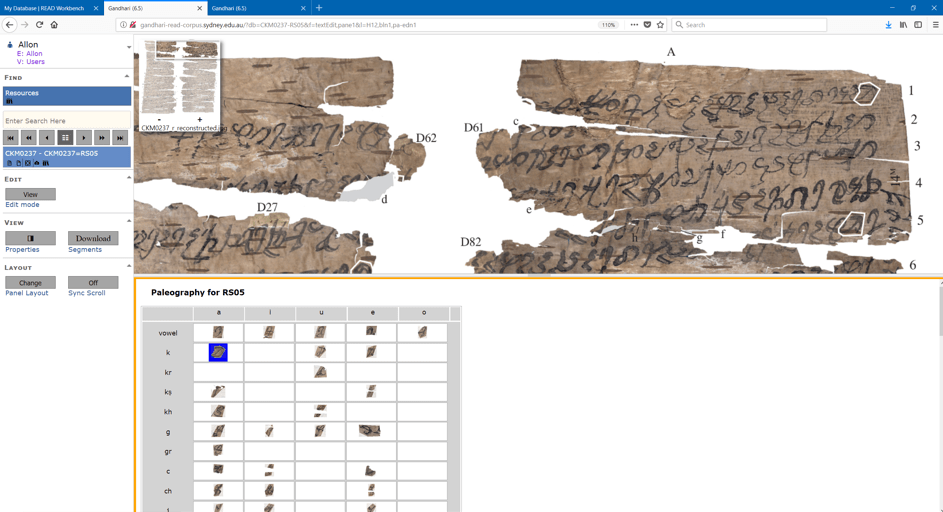

Palaeography Viewer/Editor (VE)

The Paleography VE supports the development of a comprehensive palaeographic report of an edition of a text.  Image segments are tagged with palaeographic properties.  Image segments may be exported as individual graphic files.  The Paleography VE encompasses the following constituent features:

  • Paleography Report
  • Paleography Tag
  • Image Segment Export
Fig X

Properties Component

The Properties Component supports the display of the attributes and constituents of the selected entity.  The Properties Component is accessed from Utility Panel when the Edition VE, Glossary VE or Structure VE pane is selected.  The Properties Component pane provides both a conventional user interface and a tabbed record interface.  The Properties Component aggregates access to features in context to its support for the Edition VE, Glossary VE or Structure VE.  The capacity to access the Attributes, Annotations and Tag Components is common to each instantiation of the Properties Component.  The Edition VE and Glossary VE also include access to specialized features.

  • Edition Properties
  • Glossary Properties
  • Structure Properties
  • Catalog Properties
Fig X

READ Interface

The READ Interface encompasses the READ window and its component panes.  The READ window comprises a fixed position Utility Panel on the left-hand side and as many as three configurable VE panels.  The VE panels have a Main Pane and a selectively displayed Properties Pane.  The READ Interface encompasses the following constituent features:

  • Utility Panel
  • User Settings
  • Search Catalog
  • Browse Catalog
  • Resources
  • Edit Tools
  • View Tools
  • Layout
  • Viewer/Editor Panel
  • Main Pane
  • Properties Pane

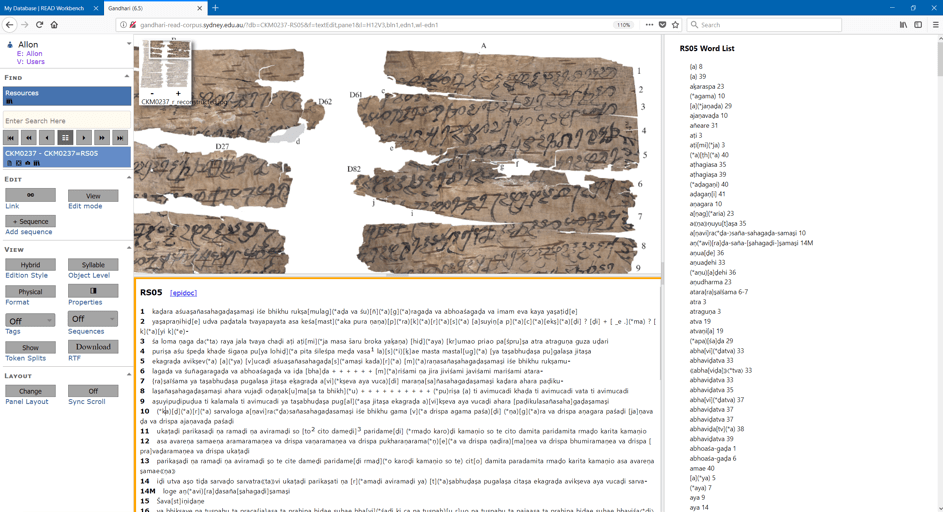

read interface.png
The READ Interface displayed in a browser window panel with a fixed position Utility Panel feature and an embedded Properties Pane.

RTF Export Component

The RTF Export Component supports the export of a styled RTF rendition of an edition, glossary, translation or chāyā.    The application of paragraph and character styles provides granular control over RTF formatting.  The rendition may be imported into a desktop publishing environment for layout and formatting in preparation for formal publishing.  The RTF Export Component encompasses the following constituent features:

  • Edition Publishing
  • Glossary Publishing
  • Translation Publishing
  • Chāyā Publishing

The capability to export to RTF is provided in the View Tools feature of the Edition VE, Glossary VE, Translation V or Chāyā V.

rtf export.png
Fig X

Structure Viewer/Editor (VE)

The Structure VE supports the implementation and display of hierarchical sequences.  Parallel sequence hierarchies may be developed to represent alternative analysis structures.  At their lowest level sequences are constituted by entities exposed by the Edition VE, generally words and compounds.  The Structure VE encompasses the following constituent features:

  • Structure Builder
  • Constituent Linker
  • Structure Attributes

The Structure VE is augmented by an Properties Component constituent, the Structure Properties feature.

The Structure VE displayed with an embedded Properties Pane.

Tag Component

The Tag Component supports the implementation and display of semantic tag annotations within the Edition VE and the Paleography VE.  The Tag Component encompasses the following constituent features:

  • Edition Entity Tag
  • Edition Tag Mode
  • Edition Tag Display
  • Paleography Tag Mode
  • Structure Tag Mode

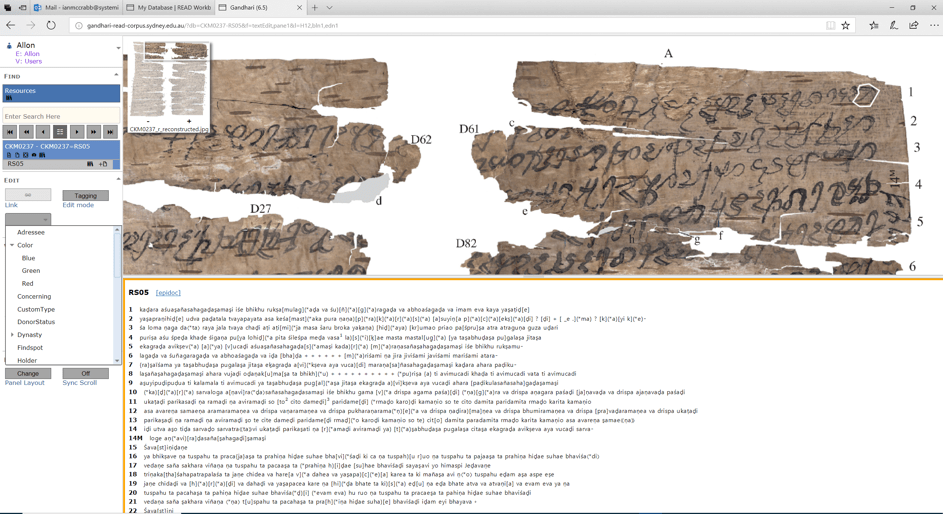

The Tag Component displayed with the Utility Panel.

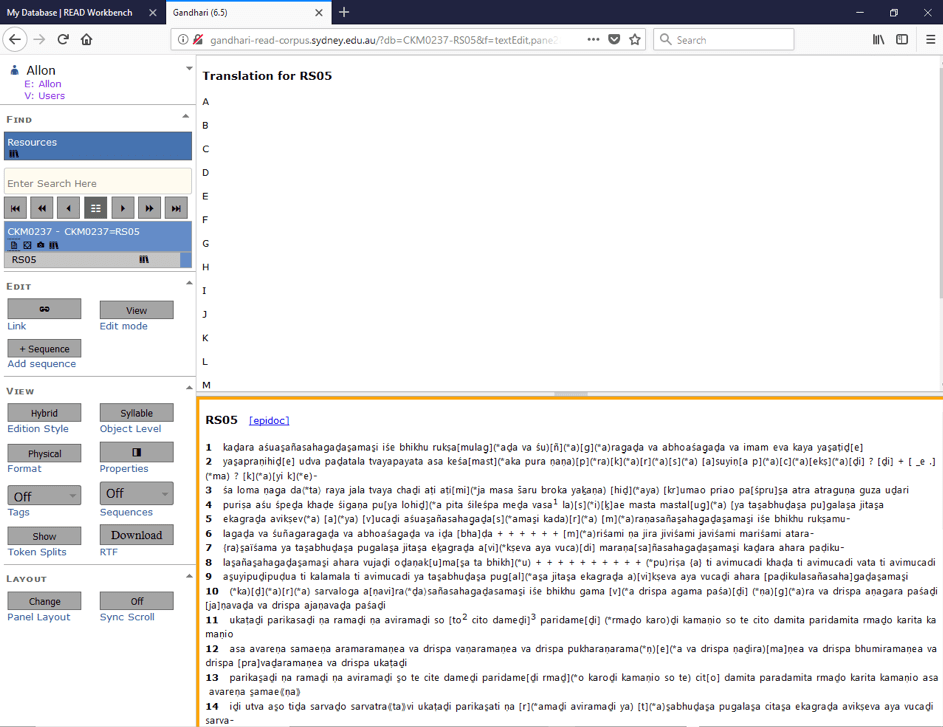

Translation Viewer

The Translation V supports the display of translation type annotations applied using the Annotation Component to hierarchical sequences developed using the Structure Builder feature.  The Translation V supports the concatenation of these annotations and displays them within the defined structure.  Annotations applied at lower levels of the structure are ‘shaded’ by those applied at higher levels.  The Translation V supports the display of translation annotations from multiple parallel structures.  Translation type annotations are synchronized with the corresponding sequence(s) in the Edition VE and with the corresponding sequence(s) in the Chāyā V.


Users Component

The Users Component supports the selection and nomination of a user (a user may be a user group that has other users as members) as the default owners and users as the default for visibility access for subsequent developments within any of the features employed in the Establishment, Analysis and Studies Workflows.  The Users Component encompasses the following constituent features:

  • Ownership
  • Visibility

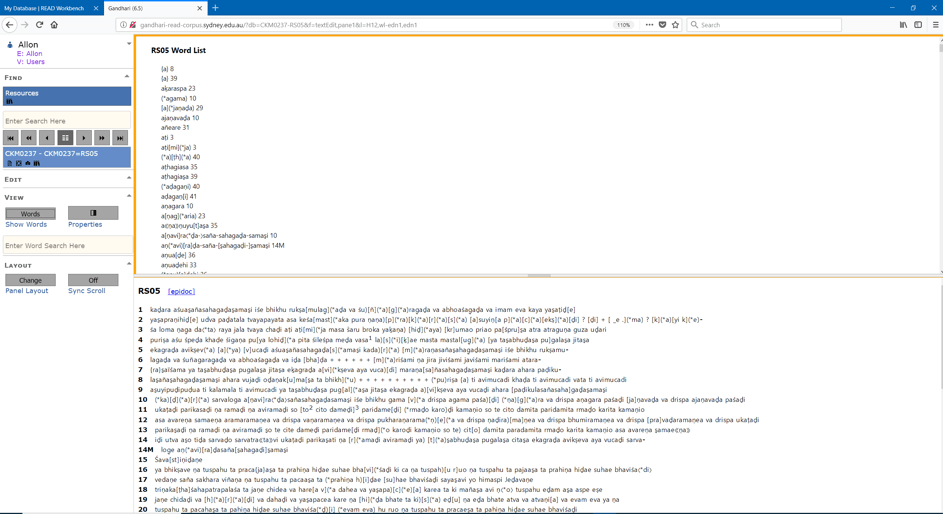

word list
Fig X

Word List Viewer

The Word List V supports the display of all words and compounds from the Edition VE in alphabetical (Gāndhārī or Sanskrit dependent upon installation configuration) order.  Any modification to word or compound separation in the Edition VE is reflected in the Word List V.  The Word List V is the departure point for the Glossary VE.

Fig X
